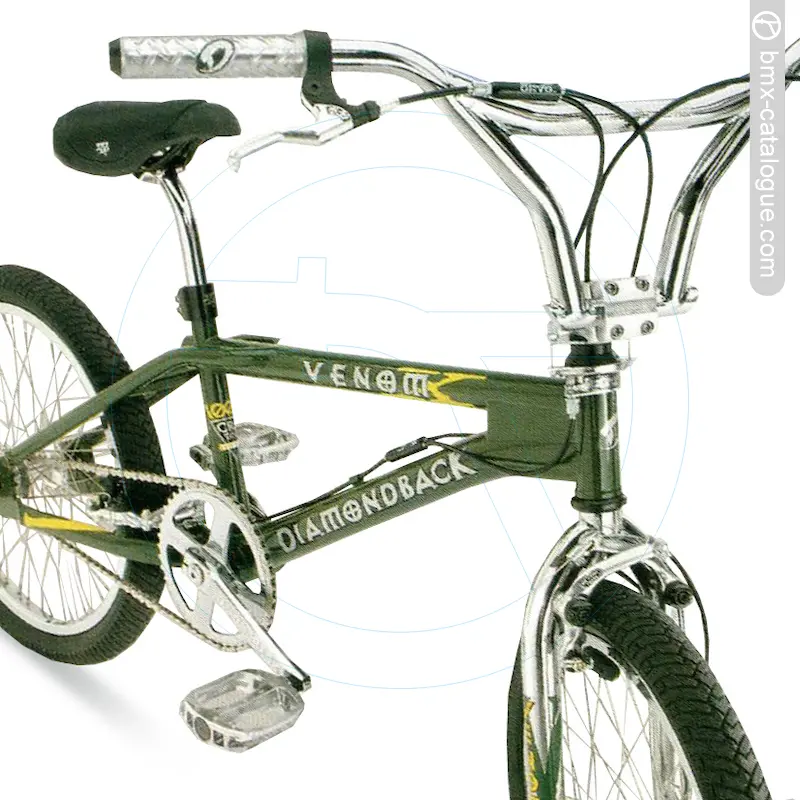

The 1999 Diamond Back Venom X BMX features a full chromoly freestyle frame with oversized tubing, double-thick dropouts, and reinforced bottom bracket and head tube, paired with a matching full chromoly fork using a 1-1/8” threadless steerer, 1-1/4” blades, and reinforced dropouts. It comes fitted with 4-piece chromoly handlebars offering an 8” rise in chrome, held by an alloy four-bolt A-head stem. Braking is handled front and rear by Dia-Compe 990 U-brakes with Dia-Compe MX-99 levers, while the drivetrain uses a DB three-piece chromoly 175mm crank in chrome with a chrome alloy 44-tooth chainwheel, matched to alloy pedals. The wheelset consists of Alex chrome double-wall 48-hole rims with high-flange alloy hubs and 14mm axles, wrapped in freestyle 20x1.95” tyres. Comfort comes via a padded freestyle seat with chromoly post, while extras include an SST 1-1/8” rotor and front and rear pegs.
Frame & Fork
3pc Cranks
Alex DW Alloy Rims
To use the BMX SerialFinder start typing the whole serial into the search bar at the top of the page, or use the Advanced Search page. Based on your entry, a filtered list of possible bikes that match your serial year and month will appear.
Diamond Back BMX serial numbers.
The first three characters ACS is the factory code.
After the above factory code, the next character is year of production. 8 = 1998, 9 = 1999. Production would have most likely started around May 1998 through to April 1999.
After the year is month of production. A = January, B = Febuary, C = March, D = April, E = May, F = June, G = July, H= August, I = September, J = October, K = November, L = December
Example: ACS8F00000
Made in Taiwan.
As a general rule, bikes made in Taiwan had around a 8 month production lead timeline before they were delivered and sold in bike shops around the world. Generally around May of each year, factories would switch production to making models for the following year.
