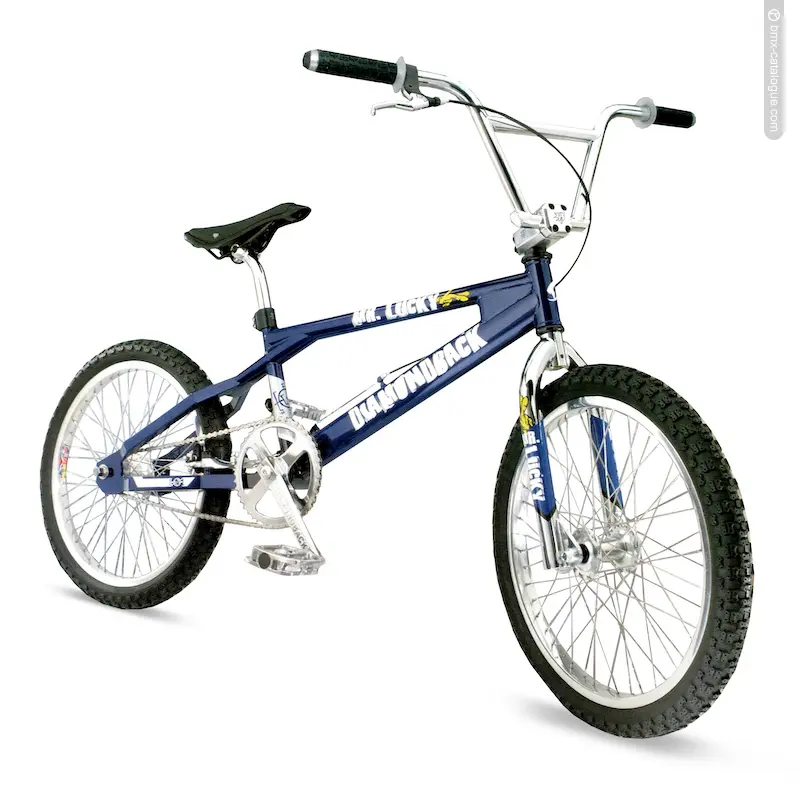

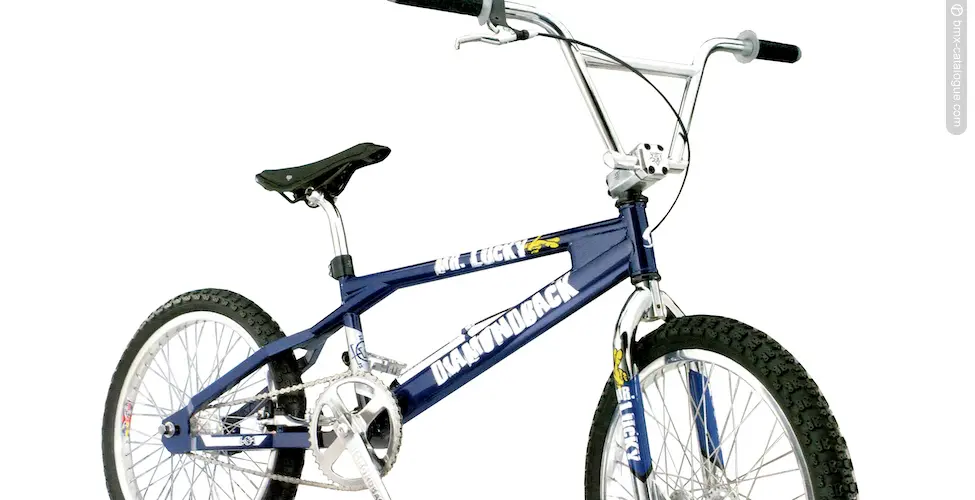

The 1999 Diamond Back Mr Lucky BMX features a full chromoly Franko-design frame with double-thick dropouts and reinforced bottom bracket and head tube, paired with a matching full chromoly fork using a threadless steerer, 1-1/4” blades, and reinforced dropouts. It comes fitted with 4-piece chromoly handlebars offering an 8” rise in chrome, held by a forged alloy A-head stem (1-1/8”). Braking is handled by a Dia-Compe 990 U-brake with Dia-Compe MX-99 lever, while the drivetrain uses a DB three-piece chromoly 180mm crank in chrome with a chrome alloy 44-tooth chainwheel, matched to alloy platform pedals. The wheelset consists of Alex alloy double-wall 20x1.75” 48-hole rims, high-flange alloy hubs with 14mm rear axle, and 14-gauge stainless spokes, wrapped in Comp III-style 20x2.125” tyres front and rear. Comfort comes via a DB super-padded seat with 8mm rails and chromoly seatpost.
Frame & Fork
3pc CR-MO Cranks
Alex DW Alloy Rims
To use the BMX SerialFinder start typing the whole serial into the search bar at the top of the page, or use the Advanced Search page. Based on your entry, a filtered list of possible bikes that match your serial year and month will appear.
Diamond Back BMX serial numbers.
The first three characters ACS is the factory code.
After the above factory code, the next character is year of production. 8 = 1998, 9 = 1999. Production would have most likely started around May 1998 through to April 1999.
After the year is month of production. A = January, B = Febuary, C = March, D = April, E = May, F = June, G = July, H= August, I = September, J = October, K = November, L = December
Example: ACS8F00000
Made in Taiwan.
As a general rule, bikes made in Taiwan had around a 8 month production lead timeline before they were delivered and sold in bike shops around the world. Generally around May of each year, factories would switch production to making models for the following year.
