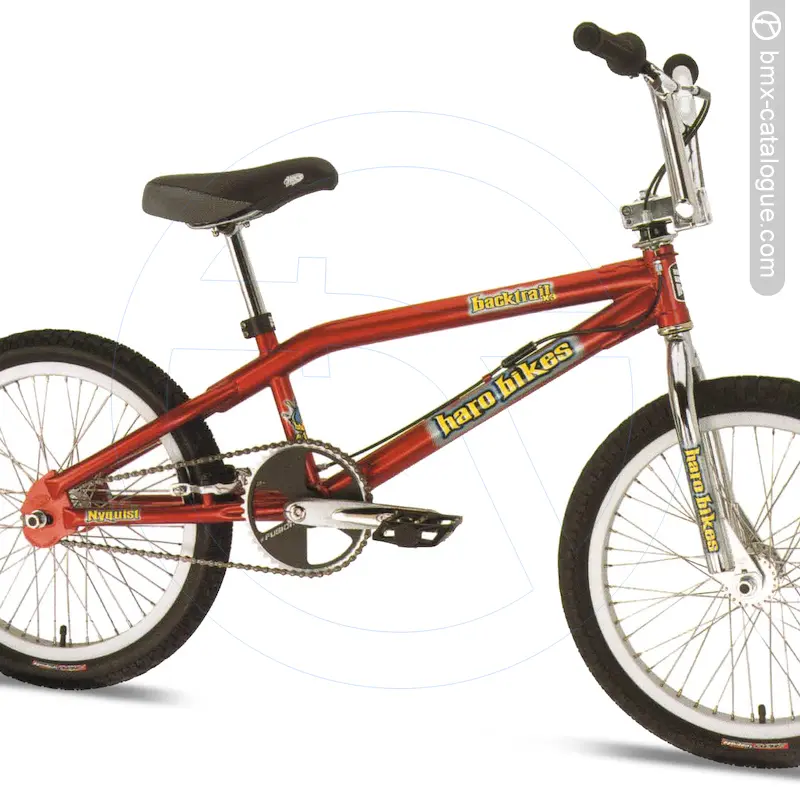

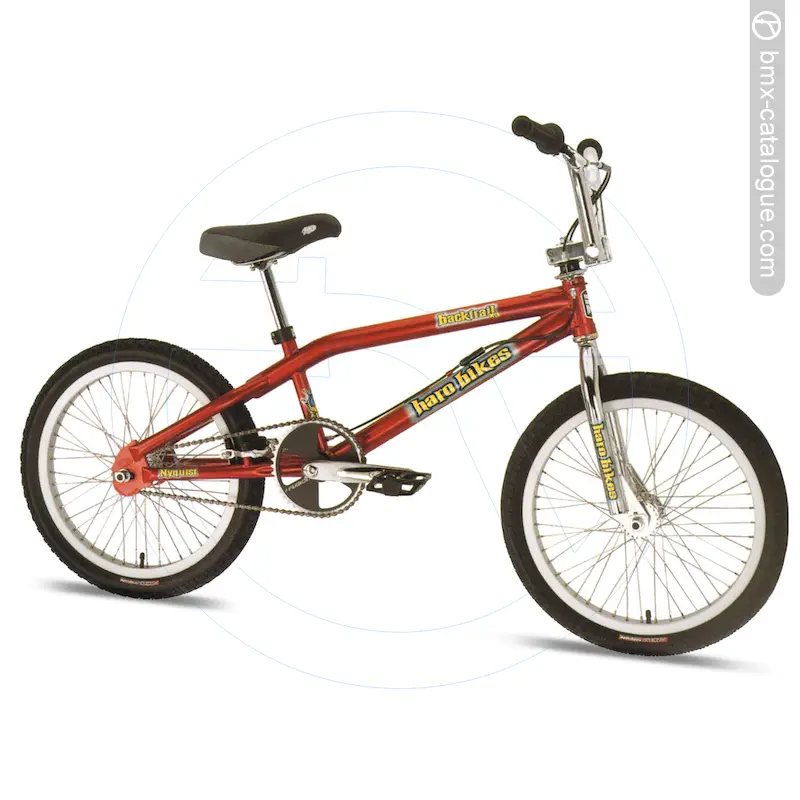

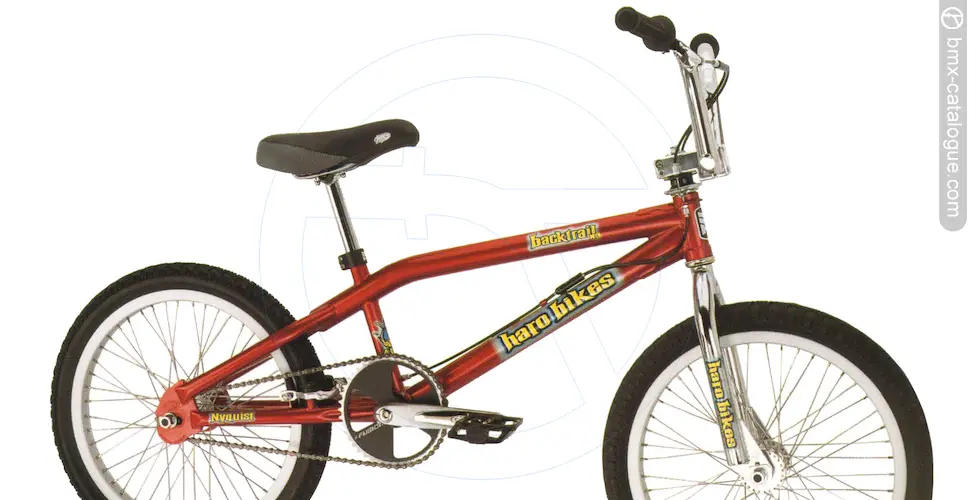

With its CRMO framee, humongous tubes, double thick dropouts and headtube the 2000 Haro Backtrail X3 is built to take anything you can dish out. Same full cromoly frame as BackTrail Pro. Cromoly Straight Shooter fork. New Haro forged cromoly cranks. Haro Hefler rims with Catapult tires. Haro Jackhammer cromoly bars. Haro Landing Pad seat. SST Oryg w/Dia-Compe 996 u-brake. Dia-CompeTank Aheadset.
Headset Size
1 1/8"
Seatpost Size
25.4mm
Top Tube Size
20.6"

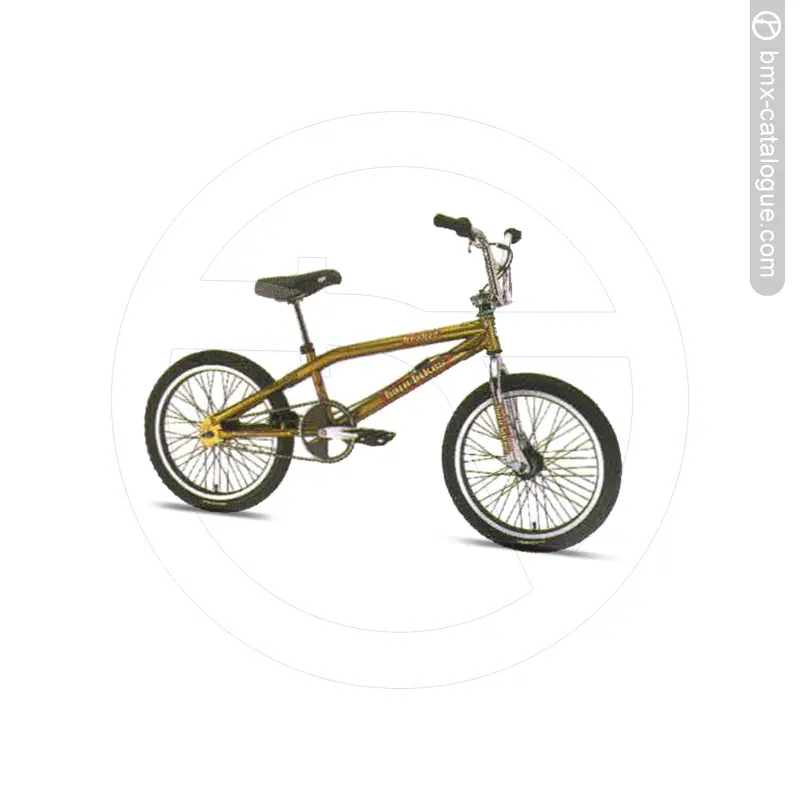

Original Colours
B3J9X00000 B3J0Y00000
Made in Taiwan.
The fourth digit in the serial indicates year of production (1999 or 2000). X in the serial indicates production Month (E to L - May to Dec). Y in the serial indicates production Month (A to D - Jan to April).
Backtrail X3 model abbreviation is B3 or X3.
Bikes made in Taiwan usually had an 5-8 month production and shipping timeline before they were sold in bike shops around the world. Bikes welded in the later months of the year would normally be made for the following year.
| HT˚ | ST˚ | ST | CS | BB | WB | SO | W |
| 74.5˚ | 70˚ | 260.5 | 358.9 | 294 | 922.61 | 596.9 | 34.8 |
HT˚ = Head Tube Angle, ST˚ = Seat Tube Angle, ST = Seat Tube Length to top, CS = Chain Stay Length, BB = Bottom Bracket Height, WB = Wheel Base Length, SO = Stand Over, W = Weight. All dimensions center-to-center unless otherwise noted. Dimensions provided in millimeters. Chainstay and Wheelbase dimensions given as minimum lengths. Maximum lengths are up to 20mm longer
