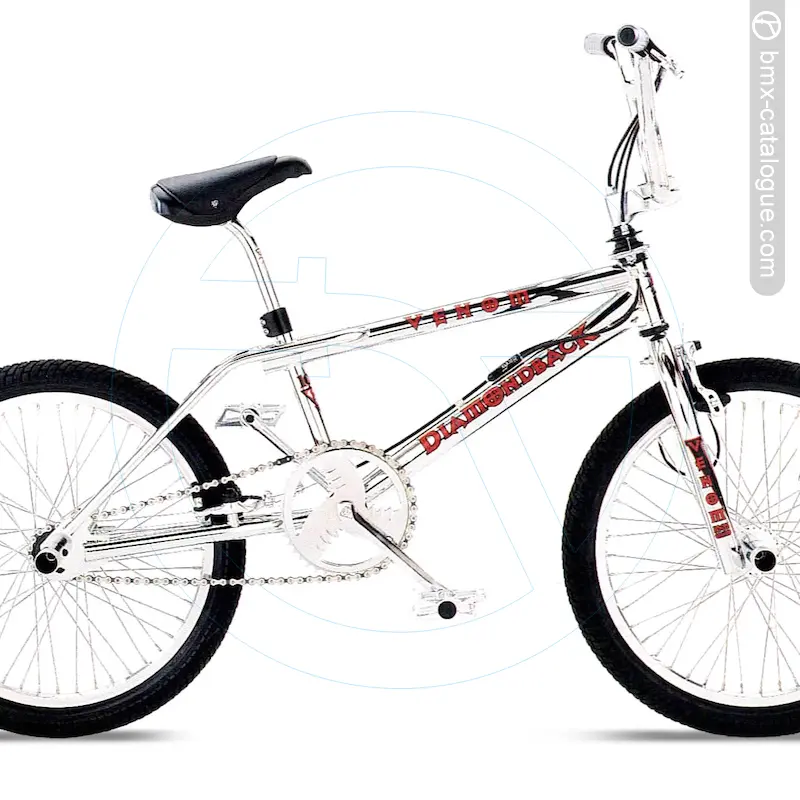

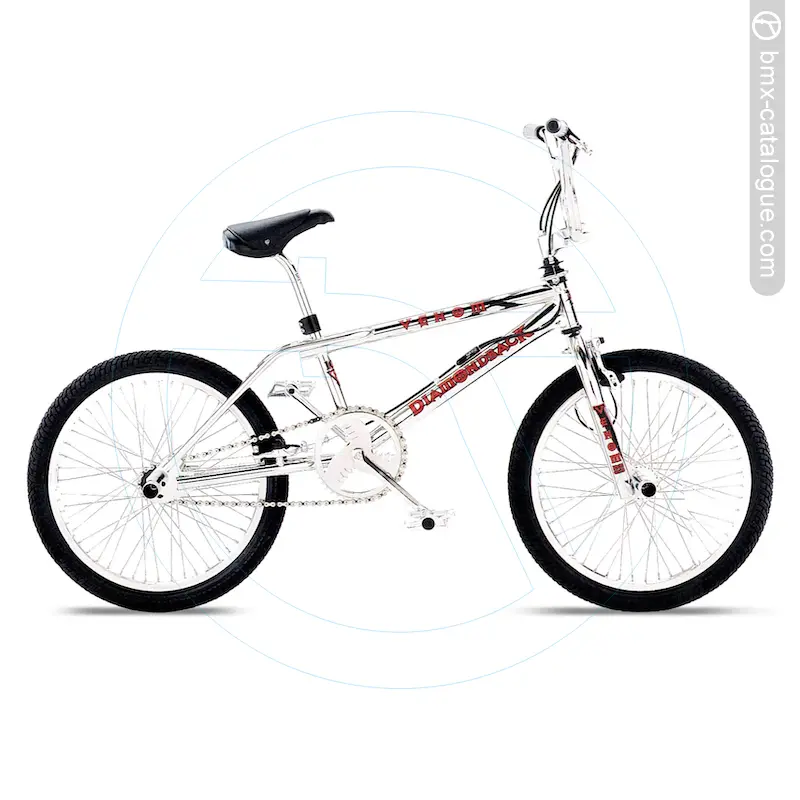

The 1998 Diamond Back Venom X BMX features a full chromoly freestyle frame with oversized tubing, double-thick dropouts, and reinforced bottom bracket and head tube, paired with a matching full chromoly fork using 1-1/4” blades and reinforced dropouts. It comes fitted with DB 4-piece chromoly handlebars offering an 8” rise in chrome, held by a DB alloy stem with chromoly shaft. Braking is handled by a Dia-Compe 990 U-brake at the rear with a Dia-Compe Bull Dog front brake, both operated by Dia-Compe MX-99 alloy levers. The drivetrain uses a DB one-piece chromoly 175mm crank in chrome with a DB 44-tooth alloy chainwheel, also in chrome, matched to DB alloy platform pedals with chromoly 1/2” axles. The wheelset consists of Alex alloy double-wall 48-hole rims, high-flange alloy hubs, and 14-gauge stainless spokes, wrapped in DB freestyle 20x1.95” tyres. Comfort comes via a DB padded freestyle seat with a chromoly micro-adjust seatpost (25.4mm), while extras include an SST Ory 1” rotor and front and rear threadless pegs. The bike was finished in full chrome.
Frame & Fork
1pc CR-MO Cranks
Alex DW Alloy Rims
To use the BMX SerialFinder start typing the whole serial into the search bar at the top of the page, or use the Advanced Search page. Based on your entry, a filtered list of possible bikes that match your serial year and month will appear.
Diamond Back BMX serial numbers.
The first three characters ACS is the factory code.
After the above factory code, the next character is year of production. 7 = 1997, 8 = 1998. Production would have most likely started around May 1997 through to April 1998.
After the year is month of production. A = January, B = Febuary, C = March, D = April, E = May, F = June, G = July, H= August, I = September, J = October, K = November, L = December
Example: ACS7F00000
Made in Taiwan.
As a general rule, bikes made in Taiwan had around a 8 month production lead timeline before they were delivered and sold in bike shops around the world. Generally around May of each year, factories would switch production to making models for the following year.
