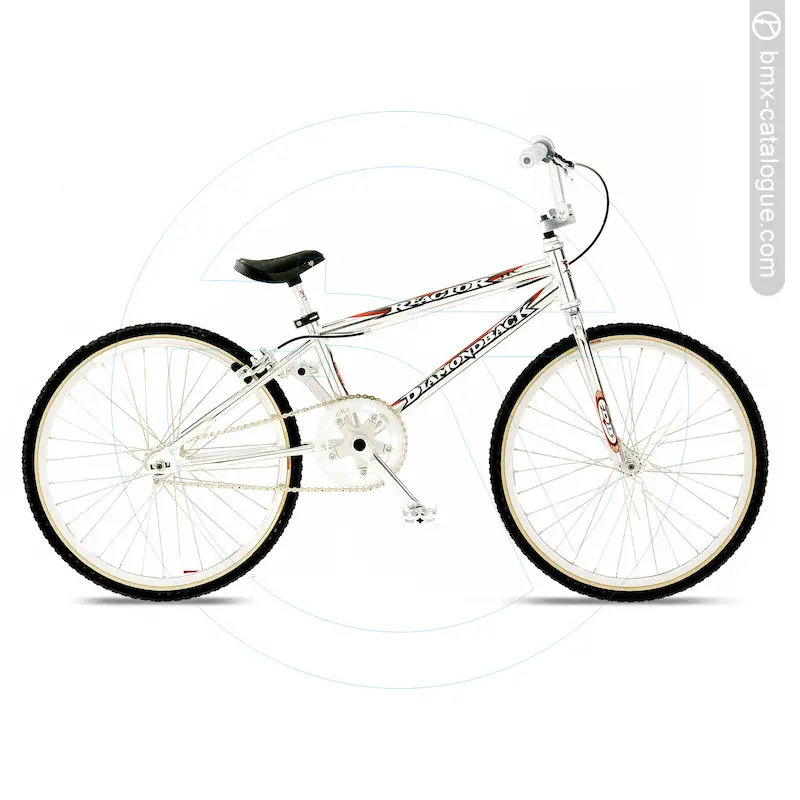

The 1998 Diamond Back Reactor JR BMX features a lightweight 7005 aluminium frame with a threaded bottom bracket and 1” head tube, paired with a chromoly fork using 1” blades and finished in chrome. It comes fitted with DB 7005 alloy handlebars offering a 5” rise, held by an alloy four-bolt stem with chromoly shaft. Braking is handled by an alloy caliper with Dia-Compe MX-101 alloy lever, while the drivetrain uses forged alloy 165mm crank arms with an alloy spider and 43-tooth alloy chainwheel, matched to DB alloy pedals with chromoly 9/16” axles. The wheelset consists of Alex double-wall alloy 32-hole rims, alloy precision sealed-bearing hubs with chromoly hollow flip-flop rear axles, and stainless spokes, wrapped in Tioga Comp III 20x1-3/8” tyres. Comfort comes via a DB one-piece seat with integrated alloy post. The bike was finished in ball-burnished with a chrome fork.
Alloy Frame
3pc Alloy Cranks
Alex Alloy Rims
To use the BMX SerialFinder start typing the whole serial into the search bar at the top of the page, or use the Advanced Search page. Based on your entry, a filtered list of possible bikes that match your serial year and month will appear.
Diamond Back BMX serial numbers.
The first character H is the factory code.
After the above factory code, the next character is year of production. 7 = 1997, 8 = 1998. Production would have most likely started around May 1997 through to April 1998.
After the year is month of production. A = January, B = Febuary, C = March, D = April, E = May, F = June, G = July, H= August, I = September, J = October, K = November, L = December
Example: H7H00000
Made in Taiwan.
As a general rule, bikes made in Taiwan had around a 8 - 9 month production lead timeline before they were delivered and sold in bike shops around the world. Generally around May of each year, factories would switch production to making models for the following year.
