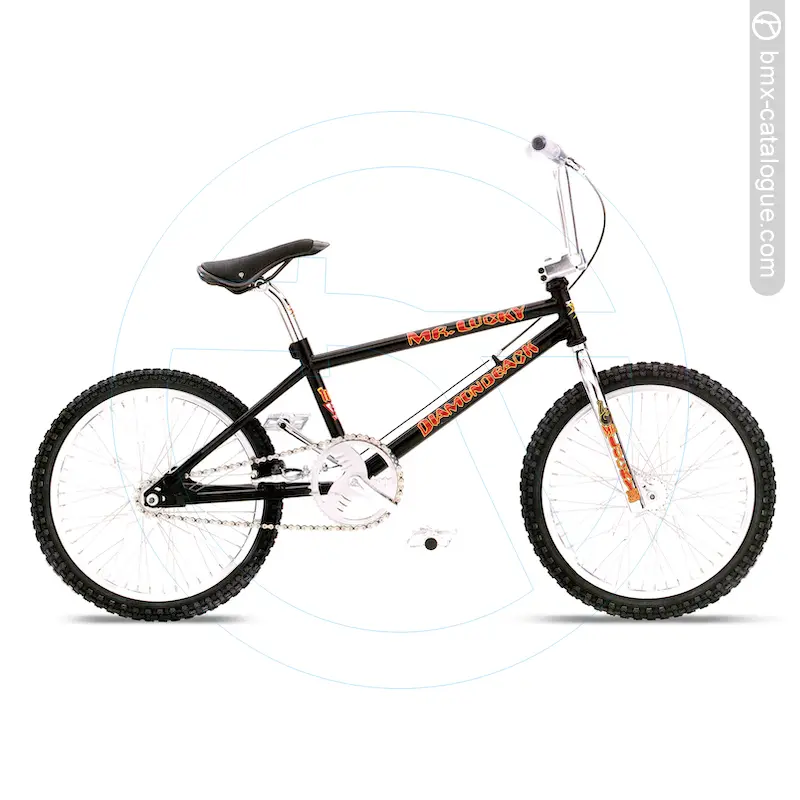

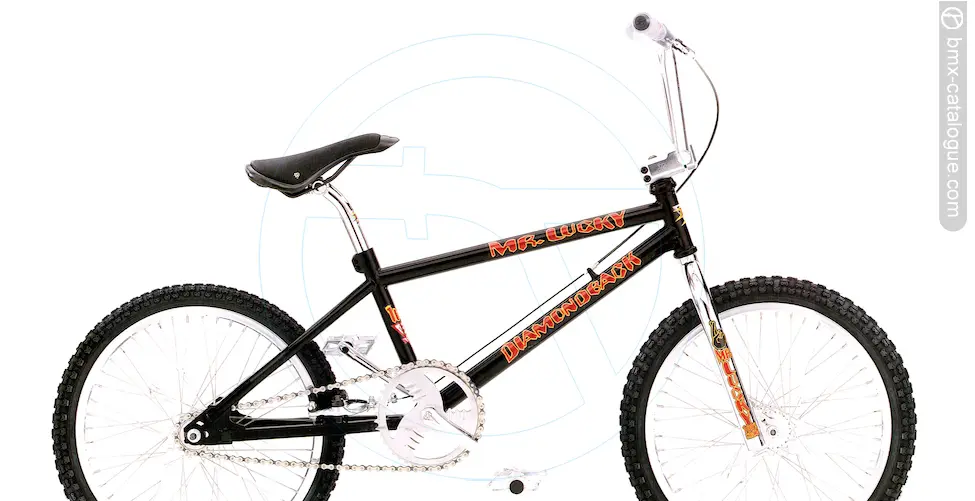

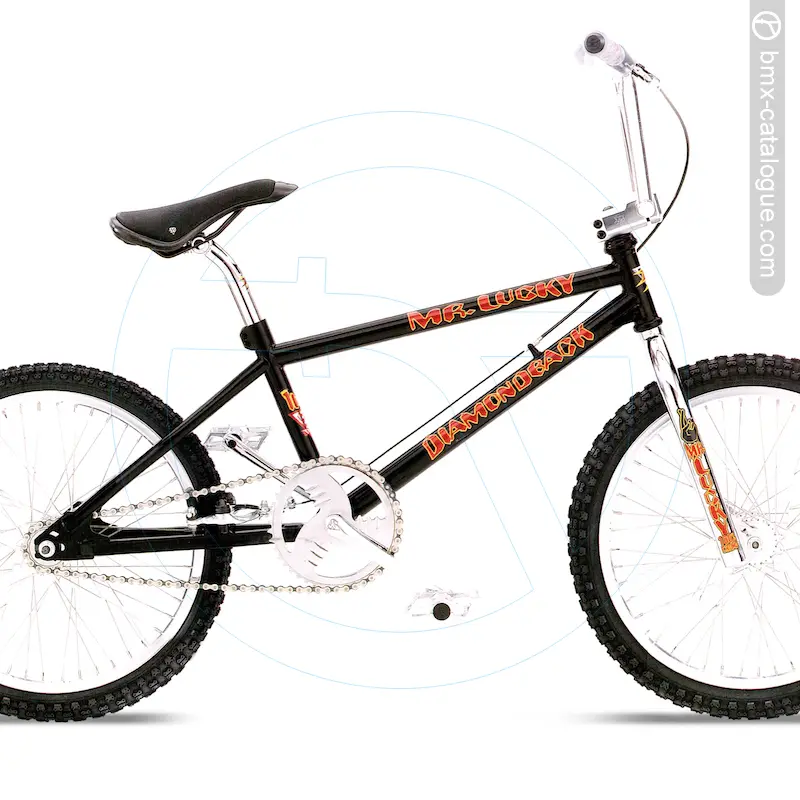

The 1998 Diamond Back Mr Lucky BMX features a full chromoly frame with oversized tubes, double-thick dropouts, a reinforced bottom bracket and head tube, plus box chain stays for added strength. Up front is a full chromoly fork with a 4mm crown insert, double-thick dropouts, and 1-1/4” blades. It runs 4-piece chromoly handlebars with an 8.5” rise, finished in chrome, paired with a forged alloy A-head stem (1-1/8”). Braking is handled by a Dia-Compe 990 U-brake with MX-101 lever, while drivetrain duties fall to a DB one-piece chromoly 180mm crank in chrome, matched to DB alloy platform pedals with chromoly 1/2” axles. Rolling stock includes Alex alloy double-wall 20x1.75” 48-hole rims, alloy high-flange hubs, and 14G stainless spokes, wrapped in Comp III-style tyres (20x1.75” rear, 20x2.125” front). Comfort comes via a DB padded seat with 8mm rails and a chromoly micro-adjust seatpost (25.4mm). The bike is finished in black with chrome detailing.
Frame & Fork
1pc CR-MO Cranks
Alex DW Alloy Rims
To use the BMX SerialFinder start typing the whole serial into the search bar at the top of the page, or use the Advanced Search page. Based on your entry, a filtered list of possible bikes that match your serial year and month will appear.
Diamond Back BMX serial numbers.
The first three characters ACS is the factory code.
After the above factory code, the next character is year of production. 7 = 1997, 8 = 1998. Production would have most likely started around May 1997 through to April 1998.
After the year is month of production. A = January, B = Febuary, C = March, D = April, E = May, F = June, G = July, H= August, I = September, J = October, K = November, L = December
Example: ACS7F00000
Made in Taiwan.
As a general rule, bikes made in Taiwan had around a 8 month production lead timeline before they were delivered and sold in bike shops around the world. Generally around May of each year, factories would switch production to making models for the following year.
