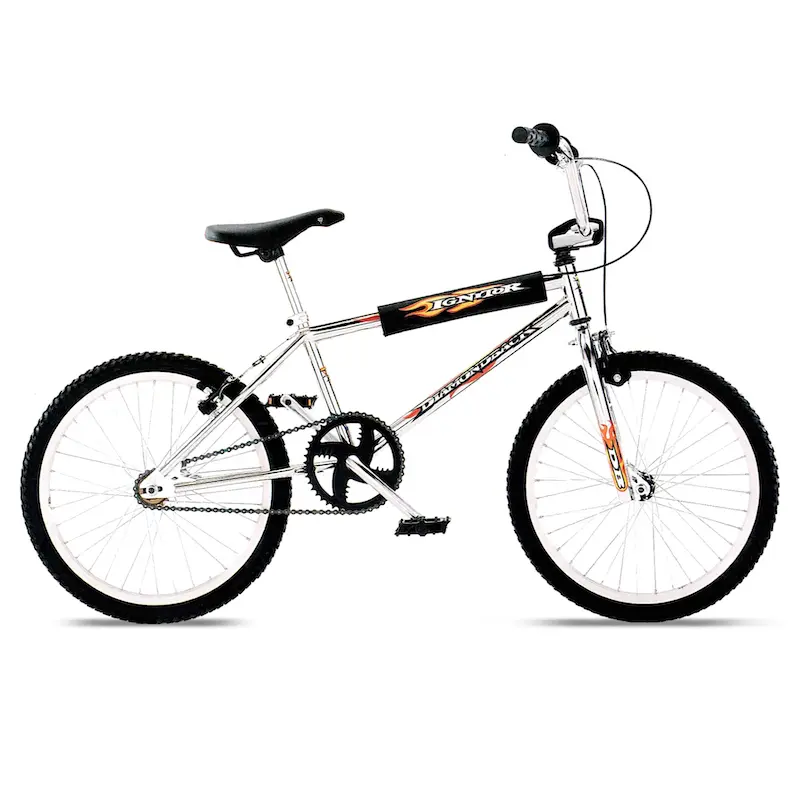

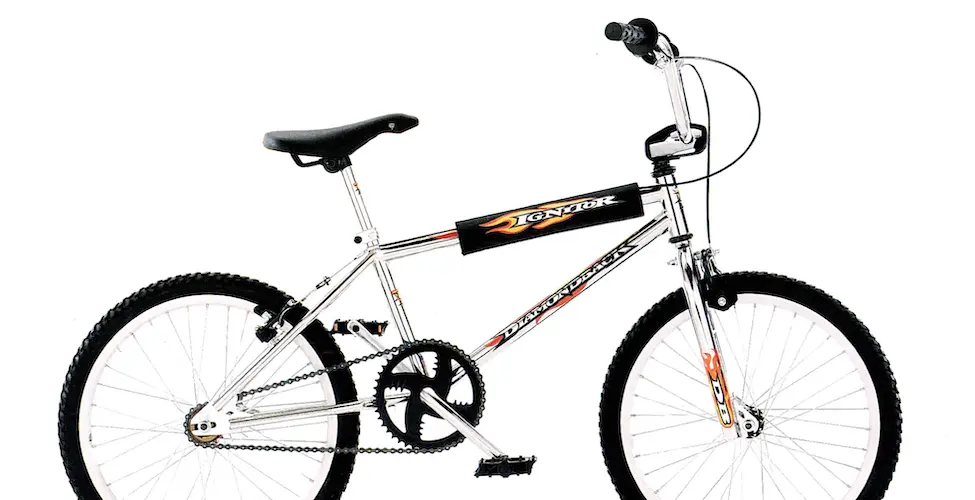

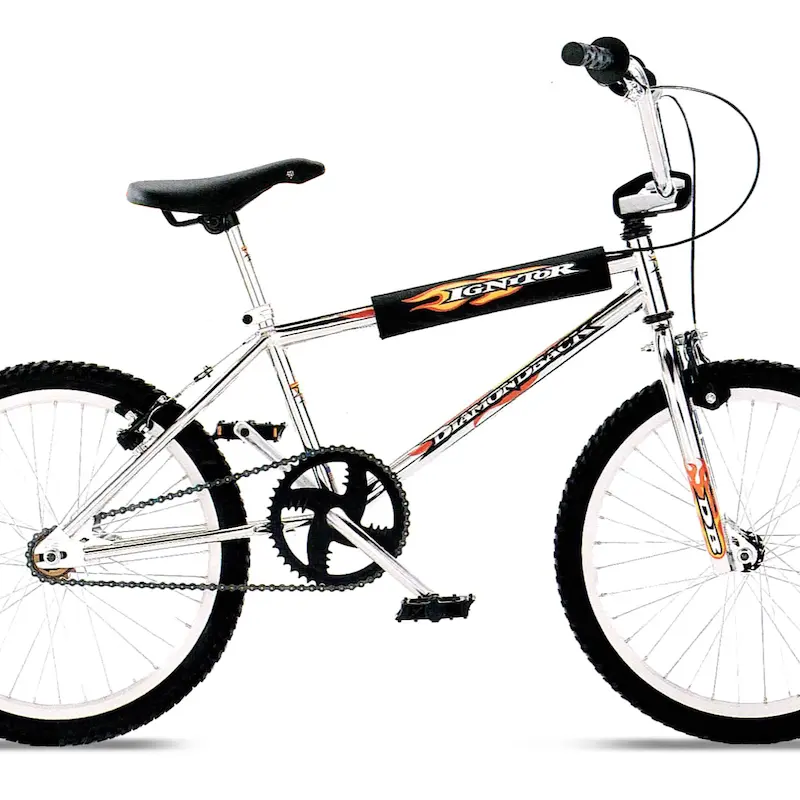

The 1998 Diamond Back Ignitor FW BMX features a hi-ten TIG-welded frame with canti studs, paired with a DB hi-ten fork using 1-1/8” blades. It comes fitted with DB handlebars offering a 7-1/2” rise in chrome, held by a DB alloy four-bolt stem. Braking is handled by a Tektro alloy cantilever rear brake with alloy caliper up front, while the drivetrain uses a DB forged 6-1/2” crank in chrome with a DB 44-tooth chainwheel, matched to DB resin platform pedals with 1/2” axles. The wheelset consists of DB alloy 20x1.75” rims, heavy-duty steel hubs, and 14-gauge spokes, wrapped in DB 20x1.75” tyres. Comfort comes via a DB padded seat with 7mm rails and a chrome steel seatpost (22.2mm). Finish options were full chrome, black with a chrome fork, or flat blue with a chrome fork.
Frame & Fork
1pc Cranks
Alloy Rims
To use the BMX SerialFinder start typing the whole serial into the search bar at the top of the page, or use the Advanced Search page. Based on your entry, a filtered list of possible bikes that match your serial year and month will appear.
Diamond Back BMX serial numbers.
The first three characters ACS is the factory code.
After the above factory code, the next character is year of production. 7 = 1997, 8 = 1998. Production would have most likely started around May 1997 through to April 1998.
After the year is month of production. A = January, B = Febuary, C = March, D = April, E = May, F = June, G = July, H= August, I = September, J = October, K = November, L = December
Example: ACS7F00000
Made in Taiwan.
As a general rule, bikes made in Taiwan had around a 8 month production lead timeline before they were delivered and sold in bike shops around the world. Generally around May of each year, factories would switch production to making models for the following year.
