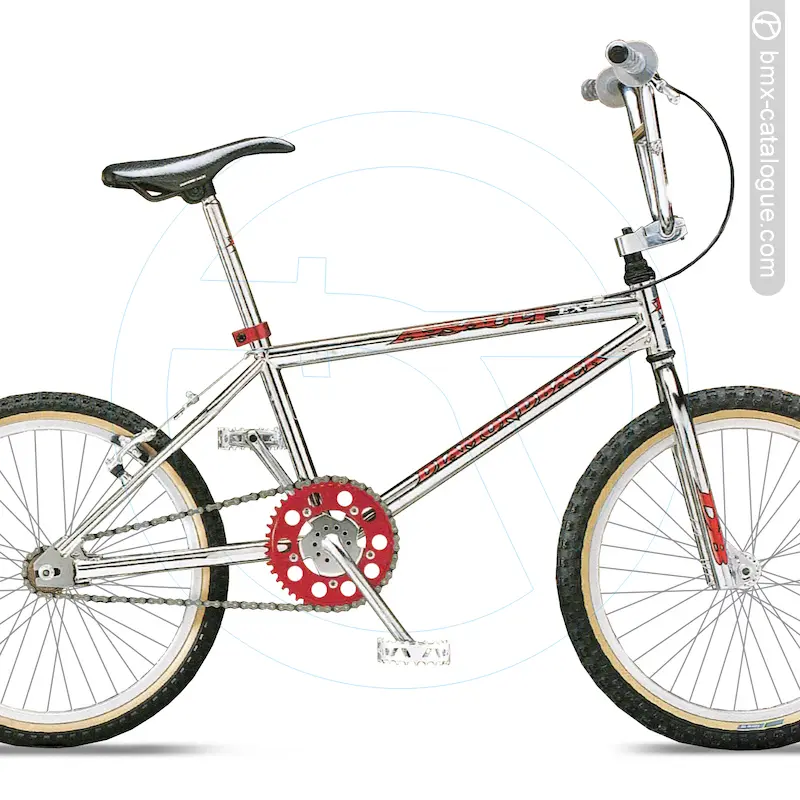

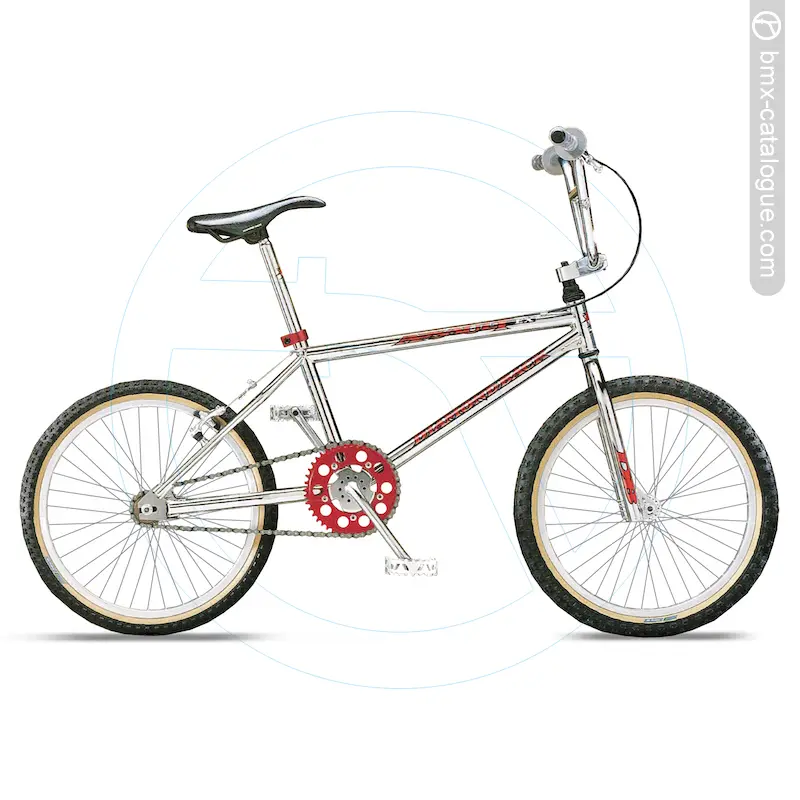

The 1996 Diamond Back Assault EX features a DB full TIG welded, race geometry tri-moly frame with Snake stays, oval chainstays, cantilever brake bosses, double thick dropouts. True Temper top and down tubes. DB race design CR-MO handlebar. Weinmann 4019 alloy 20x1.75 36 hole rims. Parallax type hubs. Diacompe VC-1 alloy cantilevers and 2-finger lever. Kraton rubber grips.
Frame
1pc CR-MO Cranks
Weinmann Alloy Rims
To use the BMX SerialFinder start typing the whole serial into the search bar at the top of the page, or use the Advanced Search page. Based on your entry, a filtered list of possible bikes that match your serial year and month will appear.
Diamond Back BMX serial numbers.
There are a few possible factory codes. First two characters KW or first 3 characters ACK or ACY.
After the above factory codes, the next character is year of production. 5 = 1995, 6 = 1996. Production would have most likely started around May 1995 through to April 1996.
After the year is month of production. A = January, B = Febuary, C = March, D = April, E = May, F = June, G = July, H= August, I = September, J = October, K = November, L = December
Example: ACK5H00000, ACY5F00000 or KW5H00000
Made in Taiwan.
As a general rule, bikes made in Taiwan had around a 8 month production lead timeline before they were delivered and sold in bike shops around the world. Generally around May of each year, factories would switch production to making models for the following year.
