1993 Haro

Sport

RIDER STYLE
Freestyle

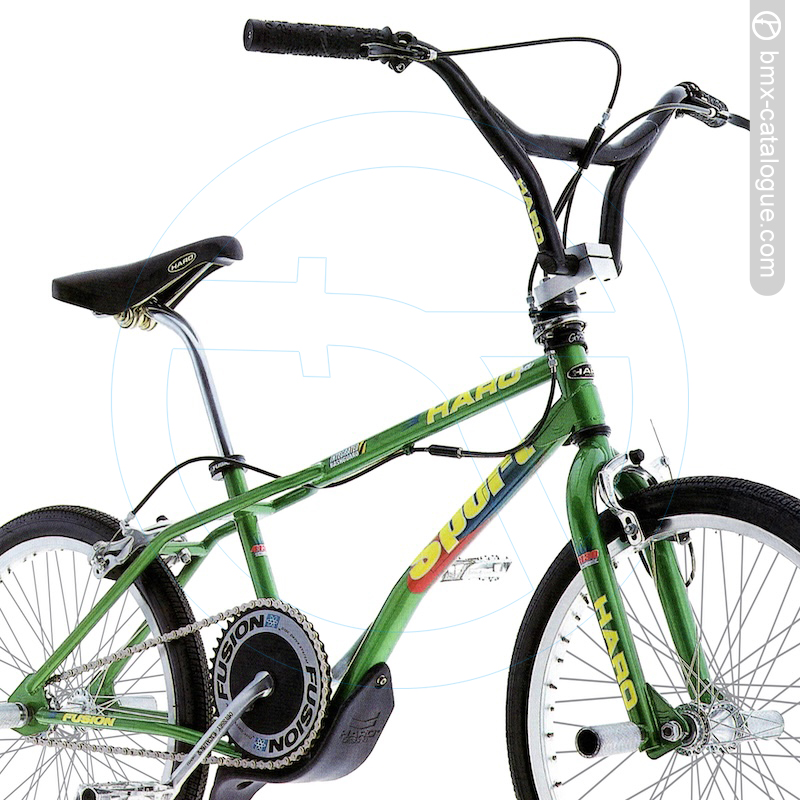

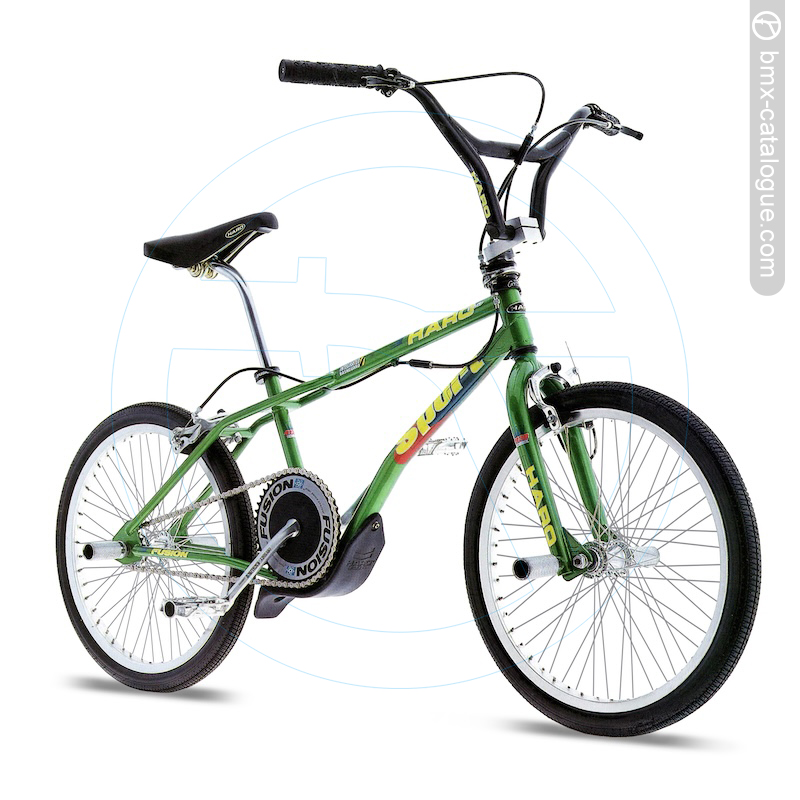

1993 Haro sport BMX Catalogue

The One. The Only. The 1993 Haro Sport. Designed for streetstylers and vertmen. Refined for '93. 100% CRMO frame and fork. Beefy 25.4mm/1" seatpost. Fat 5mm dropouts. Classic street/vert geometry. Replaceable high-impact nylon bashguard. Replaceable nylon-sleeved Air Master footpegs. Legendary Kneesaver bars. Fusion Compact Disc Drive System and computer-machined solid aluminum billet stem. Alloy 48-hole wheels. Dia-Compe Bulldog braking. Odyssey Gyro and CRMO Excalibur cranks. Haro Multisurface tires, XL Kraton grips.

The overwnelming choice of freestylers woridwide... Haro Kneesaver bars. Refined for '93. Flatter bend. Reshaped slant end cap. 110% CRMO. Fusion stem. Computer machined from a solid billet of aluminum. CRMO shaft. CRMO hollow bolt. Odyssey Gyro cable detangler. Classic Sport two-into-one top tube design New for '93 is oversized 25.4mm/1" seatpost for greater durability. Fusion Unitorque seatoost clamp: lightweight design. heavyweight clamping power. Haro Air Master pegs. Available in two styles: Fork and axle. 100% CRMO axle. Replaceable nylon sleeves for fast predictable grinds on concrete, coping railings whatever. When you wear one side out, simply flip the sleeve over and grind on

Room Icon
ORIGINAL SPECS
For this model
Frame
Fork
Handlebar
Rims
Hubs
Pedals
Front Brakes
Rear Brakes
Levers
Seat
Grips
Stem
Tyres
Cranks
CR-MO Bashguard
CR-MO w/peg mts
CR-MO Kneesaver
Haro Alloy
Alloy LF 48H
Fusion DX Alloy
DiaCompe Bulldog
DiaCompe Bulldog
DC MX 122
Haro Plastic
Haro Kraton
Fusion Alloy
Multisurface BW
Exc 1pc 175 CD 44T

Headset Size

1"

Seatpost Size

25.4 layback

Top Tube Size

Unknown

Original Colours

metalflake green
Serial Number Icon
Serial Number
Format

KH2X00000 KH3Y00000
Made in Taiwan.
The first number in the serial indicates year of production (1923 or 1993). X in the serial indicates production Month (E to L - May to Dec). Y in the serial indicates production Month (A to D - Jan to April).

Bikes made in Taiwan usually had an 5-8 month production and shipping timeline before they were sold in bike shops around the world. Bikes welded in the later months of the year would normally be made for the following year.
